OPTIC 1617S WHT
Special Neon
LEDLINE OPTIC 1617S WHT is a lens-free, flexible LED wall washer suitable for wet locations. Bends horizontally. It is designed with a precise 36° beam angle to provide excellent grazing illumination for architectural textures and facades.
• CCT : 2700K, 3000K, 4000K
• Ra : ≥90
• Bending Direction : Horizontal Bending (Lens-Free Wall Washer)
• LED Type : Sanan
• MacAdam Ellipse(SDCM) : ≤3
• Beam Angle : 36°(±8)
• Standard Lumen Output : 1588 lm/m (@3000K)
• Mounting : Aluminum Profile, Lifting Clips
• Input Voltage : 24V DC
• Color : White (Matte Surface)
• Power : 18W/M (Constant Voltage)
• IP Rating : IP68(Not for underwater application)

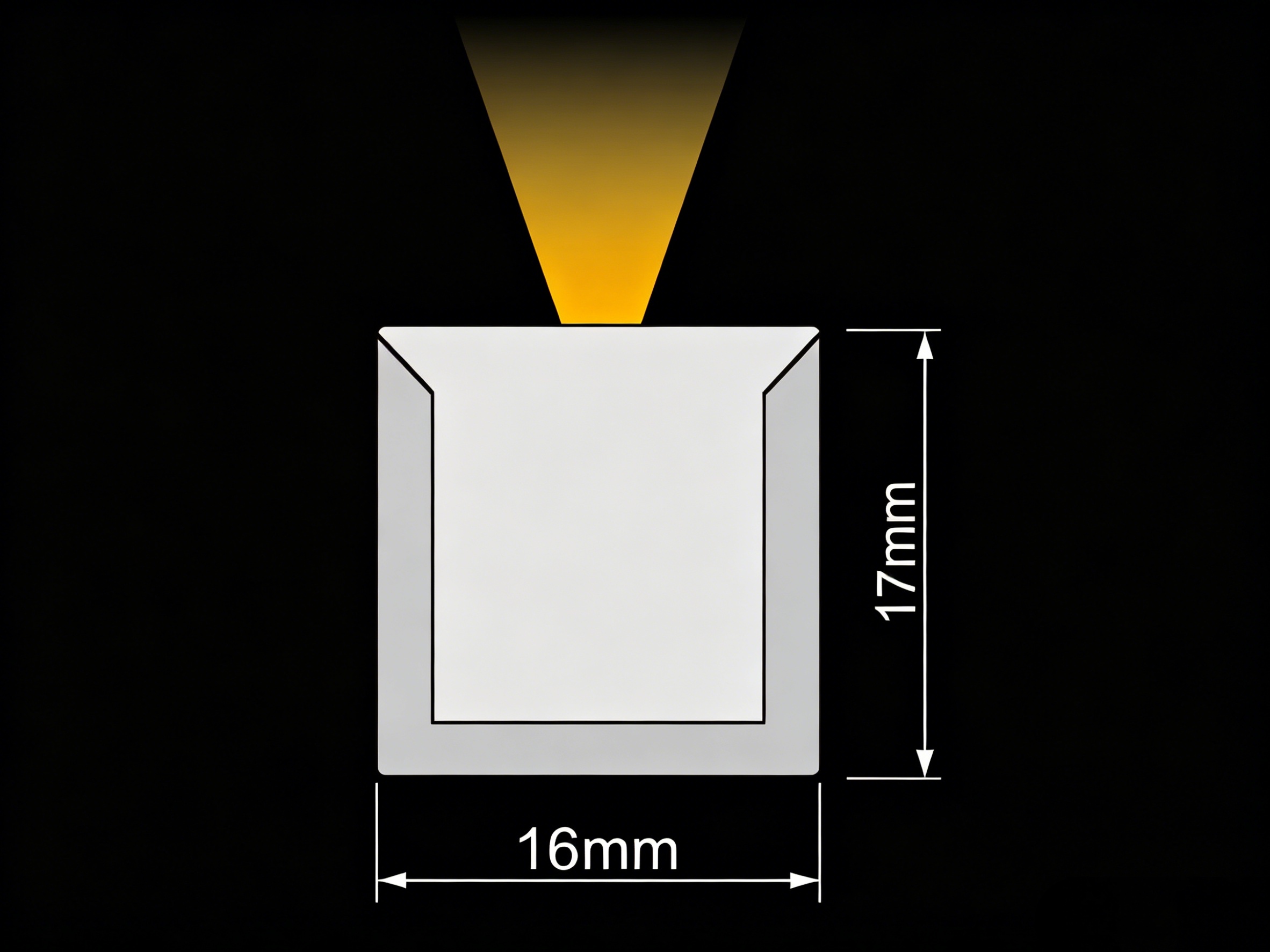

• Dimension : 16mm(W) x 17mm(H)
• Height : 17mm
• Lens : Diffused Silicone
• Operating Temperature : -40℃ to 65℃
• Sustainability : High Efficacy, UV & Chemical Resistant
• Unit Cut : 38.46mm
• Max running length : 5M
• Warranty : 5 Years
• Certification : UL, cUL, TÜV, CE, RoHS, REACH, CB
