The Perfect Wash
Defeating the Scallop Effect in Flexible Wall Washing
Imagine a beautifully textured natural stone wall dominating the lobby of a corporate headquarters. The lighting designer’s intent is clear: to bathe the entire surface in a smooth, even gradient of light, emphasizing the rich texture of the stone from the ceiling all the way down to the floor.
The contractor installs a row of standard, rigid linear wall washers. When the lights are turned on, the result is disastrous.
Instead of a smooth wash, the top of the wall looks like a series of bright, overlapping semi-circles, followed by harsh shadows. The texture of the stone is completely lost in the chaotic interplay of hot spots and dark voids.
This glaring aesthetic failure is known in the lighting industry as the "Scallop Effect."
The Anatomy of the Scallop
The scallop effect occurs when light sources are placed too close to a vertical surface, and their individual beam angles are poorly controlled.
In a traditional rigid wall washer fixture, high-power LEDs are spaced relatively far apart (often several inches). Each LED chip acts as a distinct point source. When these individual cones of light hit the wall, they create distinct arching patterns (the scallops).
For years, the solution was simply to move the fixtures further away from the wall or use massive, bulky fixtures with deep anti-glare baffles. But in modern architecture, space is a luxury. Designers want fixtures hidden in tight coves, right up against the grazing surface, and they increasingly demand flexible fixtures that can follow curved walls and organic structural lines.
The Problem with Flexible Lenses
To meet the demand for flexible wall washing, the industry introduced flexible linear lighting with built-in optic lenses.
Manufacturers would place a continuous, rigid or semi-rigid acrylic/silicone lens directly over the LED strip to narrow the beam angle (typically trying to achieve a 30° to 45° spread). While this helped push the light further down the wall, it introduced three massive new problems:
Stiffness: The physical lens made the "flexible" strip incredibly stiff, severely limiting its bending radius and making it a nightmare to install on tight curves.
Delamination & Cracking: Repeated bending often caused the rigid optic lens to delaminate or crack away from the softer silicone body, destroying the IP rating.
The "Zipper" Effect: Because the lens sat directly on top of the LEDs, it often failed to blend the light perfectly at close range, creating a micro-scalloping or "zipper" effect right at the top of the wall.
The Structural Evolution: Optic 1617S (Without Lens)
To achieve the ultimate flexible wall wash, you have to rethink the optics entirely. You must eliminate the physical lens.
At JRLite, our engineering team set out to solve the scallop effect without sacrificing true flexibility. The result is the revolutionary LEDLINE OPTIC 1617S.

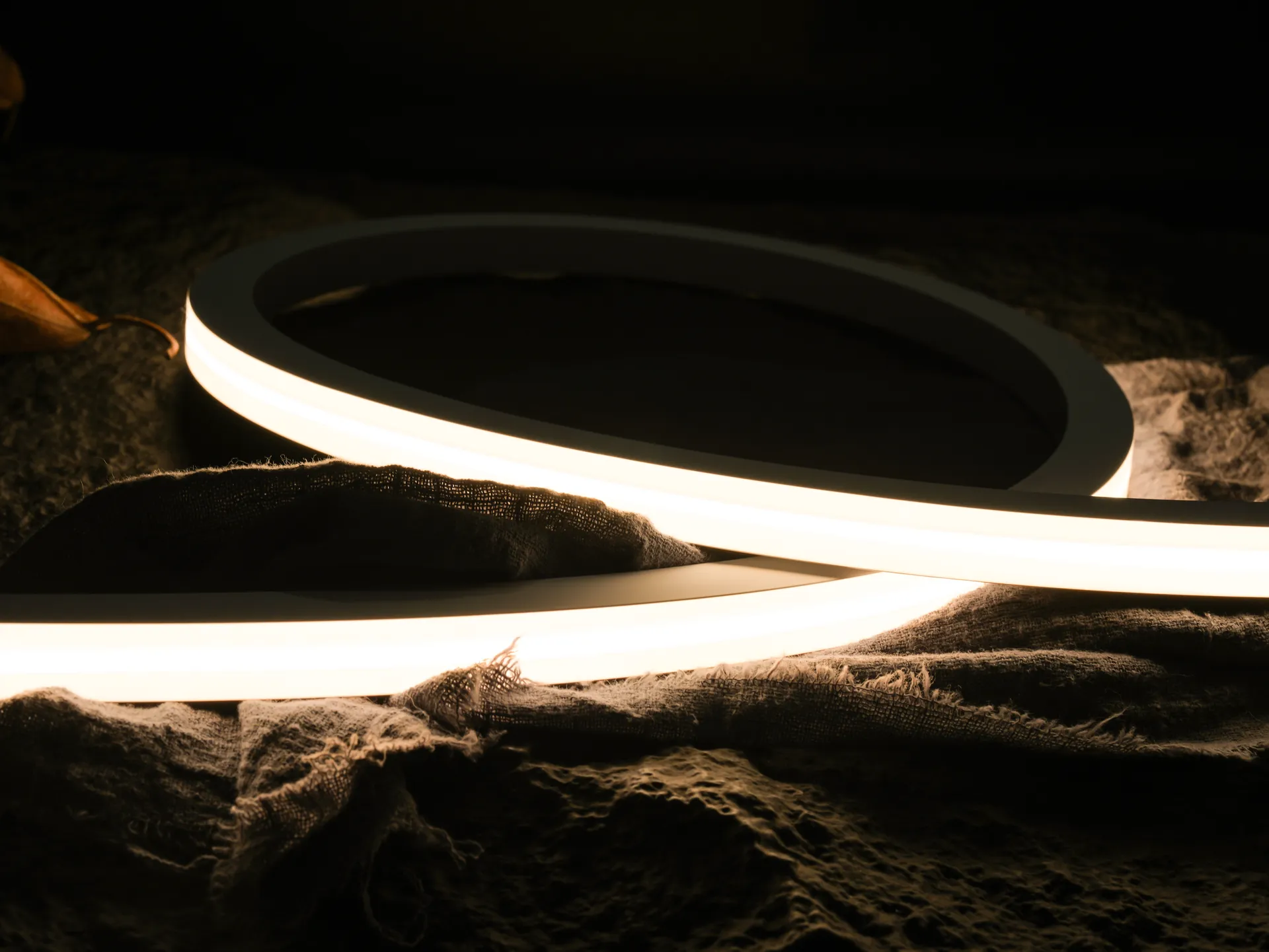

Instead of forcing light through a secondary lens, the OPTIC 1617S utilizes an advanced Structural Optical Design entirely within its compact 16mm x 17mm silicone profile. By meticulously engineering the internal reflective cavity and the precise positioning of a high-density LED array (182 LEDs/meter), we physically shape the light beam to a precise 36° spread—without ever using a physical lens.
The Benefits of Lens-Free Wall Washing
The elimination of the lens fundamentally changes the performance of the luminaire:

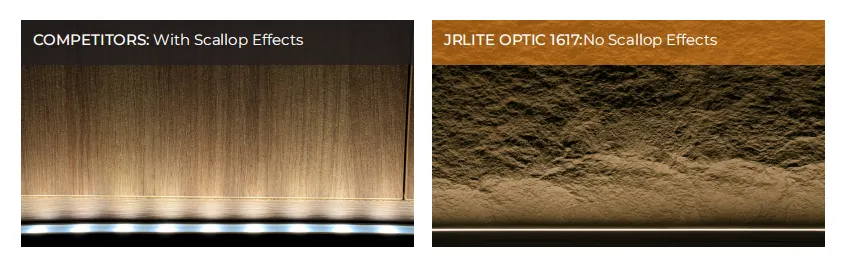

Zero Scalloping (The Perfect Gradient): The lens-free, dot-free lighting technology guarantees an exceptionally smooth, uniform wash from the top of the wall to the bottom. No hotspots, no arches, just pure texture enhancement.
True 3D Flexibility: Without a rigid optic fighting the bend, the OPTIC 1617S achieves a horizontal bending diameter of just 300mm (11.81"), allowing it to effortlessly hug complex architectural curves.
High Efficiency: By removing the transmission loss of a secondary lens, the fixture delivers a remarkable efficacy of 88 lm/W at 18W/m, throwing powerful light far down the grazing surface.
Unyielding Durability (IP68): A smooth, monolithic silicone surface means there are no lenses to crack or delaminate. It maintains exceptional weather resistance and color consistency (ONE BIN ONLY) over its entire lifespan.
A perfect wall wash shouldn't require compromising your design to fit bulky fixtures. Let the architecture dictate the curve, and let the light do the rest.
