The Long Run
Conquering Voltage Drop and the Hidden Costs of Continuous Lighting
Imagine a sweeping, 50-meter line of continuous light tracing the curved roofline of a modern museum. In the architectural rendering, it is a flawless, unbroken stroke of illumination.
But during installation, reality hits.

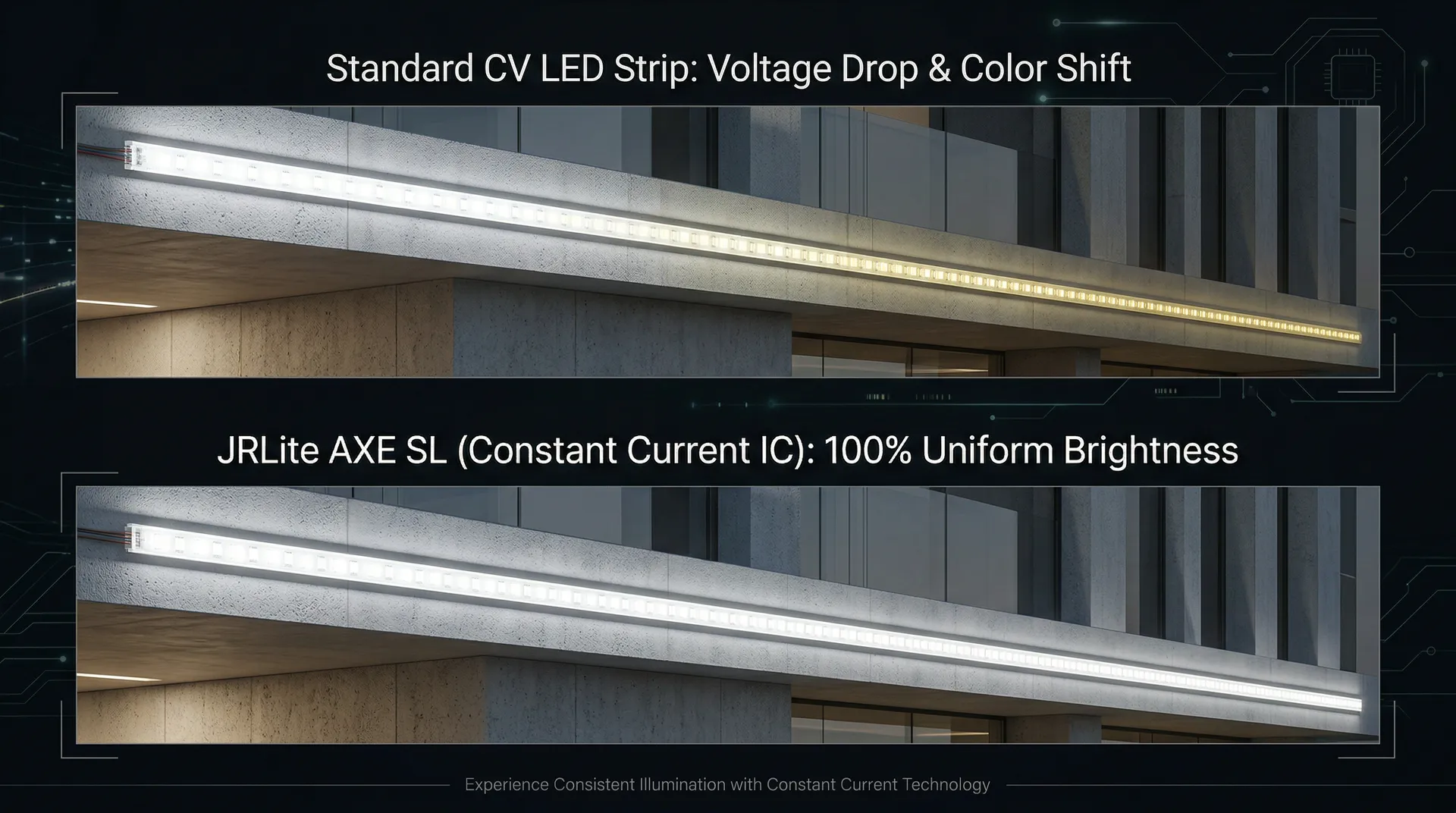

When the contractor connects a standard 24V LED neon strip to a power supply, the first few meters are brilliantly bright. But by meter 10, the light visibly dims. By meter 15, the crisp white has faded into a weak, yellowish glow. The rendering is ruined.
This phenomenon is the bane of linear lighting installations: Voltage Drop.
For lighting designers and electrical contractors, voltage drop is more than just a visual flaw; it is the root cause of skyrocketing labor costs and compromised architectural integrity. To understand how to defeat it, we must first understand the physics behind the fade.

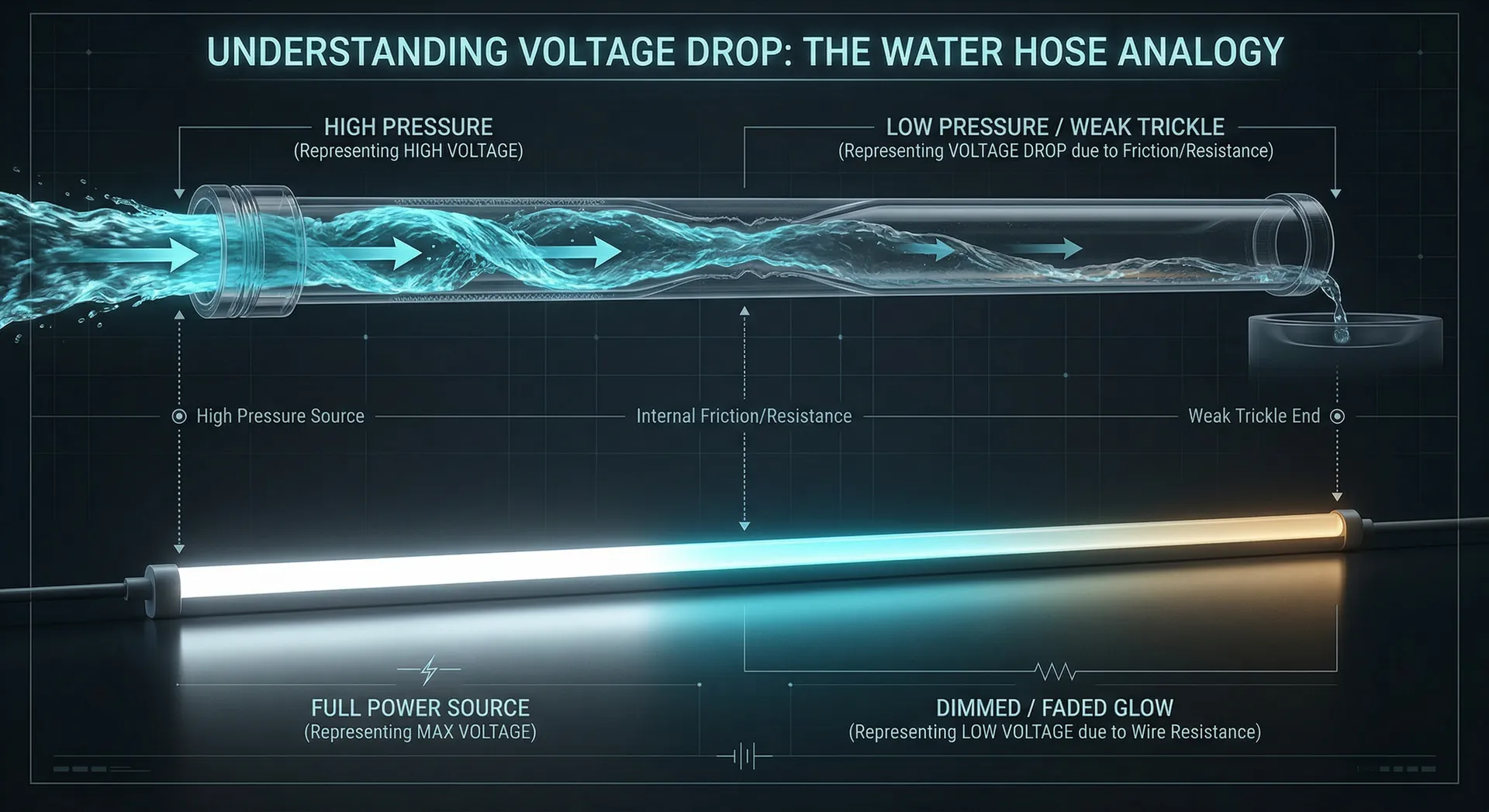

The Physics of the Fade: The Water Hose Analogy
Think of an electrical circuit like a water system. The wire is the hose, the electrical current is the water, and the voltage is the water pressure.
As water travels down a very long hose, friction against the inner walls causes the water pressure to drop. By the time it reaches the end, the powerful spray has become a mere trickle.
Electricity behaves exactly the same way. The copper traces inside an LED strip have inherent electrical resistance. As the current travels further from the power supply, this resistance consumes voltage, turning it into heat. If the voltage drops too low, the LEDs at the end of the line are starved of power, resulting in catastrophic lumen depreciation and color shifting.
The Traditional Nightmare: Hidden Labor Costs
To bypass the 5-to-10-meter limitation of standard LED strips, the industry’s traditional workaround is "multiple power feeds."
The installer is forced to run thick, parallel power cables alongside the luminaire, tapping into the LED strip every 5 meters to "inject" fresh voltage. This requires cutting the strip, soldering new wires, waterproofing every new connection, and finding places to hide multiple bulky power supplies within the architecture.
The harsh reality? The linear lighting material itself might be inexpensive, but the labor costs to install it, wire it, and hide the infrastructure can easily cost three times as much as the luminaire. Furthermore, multiple cut points drastically increase the risk of water ingress in outdoor applications.
The Engineering Breakthrough: Active Regulation via CC ICs
How do we break the distance barrier without destroying the budget on labor? We move from passive circuitry to active regulation.
The ultimate solution lies in embedding Constant Current (CC) Integrated Circuits (ICs) directly into the flexible PCB.
Unlike standard "Constant Voltage" (CV) strips that rely entirely on the incoming pressure, a CC IC acts as a microscopic, intelligent valve for every single cutting increment. Even if the voltage drops significantly as it travels down the 50-meter line, the IC detects the drop and actively regulates the flow, ensuring the LED chips receive the exact same precise electrical current from the first meter to the last.
The result? Perfect, uniform brightness from beginning to end, regardless of the distance.
The JRLite Solution: AXE SL (Super Long) Series
At JRLite, we engineered the AXE SL (Super Long & 3D Bending Neon) Series specifically to eliminate the nightmare of complex field wiring.
By combining ultra-thick 4oz rolled-copper PCBs (to minimize the initial physical resistance) with our advanced Constant Current IC architecture, the AXE SL series achieves a staggering 105 meters of continuous run from a single double-end feed (or over 50 meters from a single-end feed). From meter 1 to meter 105, the brightness variance is tightly controlled to <3%, making it entirely imperceptible to the human eye.
More importantly, we solved the ultimate contractor headache: Field Flexibility.
Many custom "super-long" factory strips cannot be cut. If the site measurements are off by even 20 centimeters, the entire roll is useless. The AXE SL series is field-cuttable, pairing perfectly with our DIY rapid connectors. You get the engineered performance of a 100-meter continuous run, with the ultimate freedom to cut, adjust, and adapt directly on the job site.
Because true architectural lighting shouldn't require compromising the design to hide the wiring.
