ACE 1010YT WHT
Facade Outline
LEDLINE ACE 1010YT WHT is a top-bending flexible LED strip featuring a unique 3-side emitting design for a wider beam angle and enhanced light uniformity. With an IP68 rating (non-submersible) and high resistance to UV and chemicals, it is built for longevity in various environments. Offering high efficacy and an extended maximum run of 13 meters, it is an excellent choice for applications requiring broad, continuous illumination with minimal connections.
• CCT : 2200K, 2700K, 3000K, 3500K, 4000K, 5300K
• Ra : ≥90
• MacAdam Ellipse(SDCM) : ≤3
• Bending Direction : Top Bend
• LED Type : 2835
• Standard Lumen Output : 925 lm/m (@3000K, 11W/m)
• Mounting : Aluminum Profile, Clips
• Voltage : 24V DC
• Power : 11W/m
• IP Rating : IP68 (Not for underwater application)

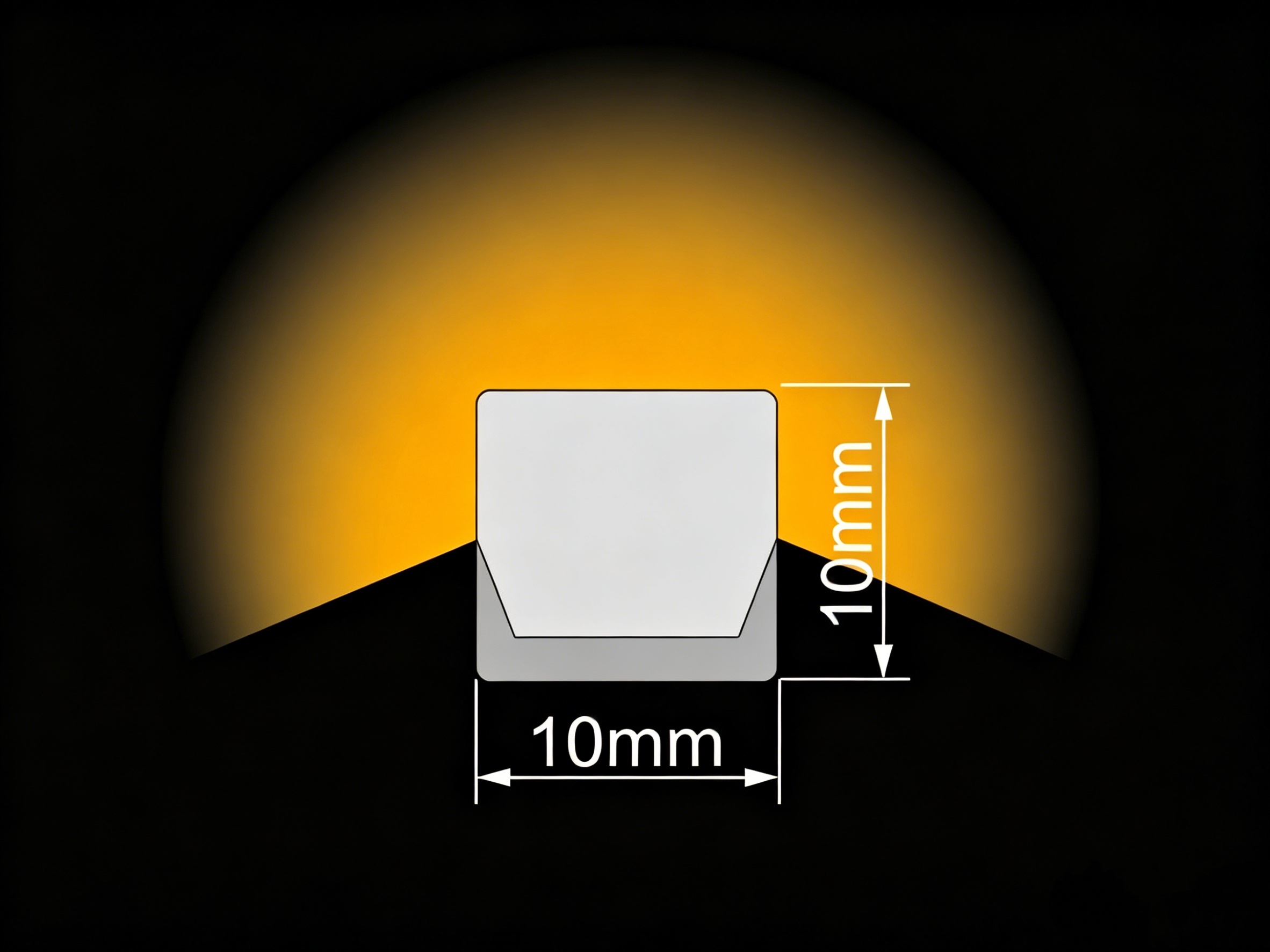

• Dimension : 10mm(W) x 10mm(H)
• Unit cut : 50mm
• Max running length : 13M
• Operating Temperature : -40℃ to 65℃
• Warranty : 5 Years
• Certification : CE, RoHS, REACH
