Decoding Pixel Pitch: Calculating the Perfect Resolution for Direct-View Neon
Imagine the grand opening of a flagship tech store. The architectural centerpiece is a continuous, 50-meter ribbon of direct-view linear neon tracing the ceiling and cascading down the wall. The lighting designer envisioned a fluid, organic color-chasing effect—like liquid light pouring through the space.
The control system is fired up, the macro is triggered, and… it looks terrible.
Instead of a smooth, liquid flow, the animation is blocky, stuttering, and visibly fragmented. It looks like a low-resolution 8-bit video game stretching across a premium architectural space. The hardware works perfectly, the programming is correct, but the visual execution is a complete failure.
Why did this happen? The contractor fell into the most common trap of dynamic lighting: misunderstanding Addressable LED pixel pitch.
The Illusion of Movement: Resolution vs. LED Density
To master dynamic lighting, we must first separate two often-confused metrics: LED Density and Pixel Density.
LED Density (e.g., 120 LEDs per meter) determines the physical brightness and how seamlessly the light blends inside the silicone profile to eliminate dark spots.
Pixel Density, however, determines the dynamic linear lighting resolution. In addressable systems (SPI or DMX), a "pixel" is the smallest controllable segment of the strip. Sometimes one pixel equals one LED (pixel-by-pixel control); sometimes one pixel controls a block of six LEDs. The physical distance between the centers of these controllable segments is the Pixel Pitch.

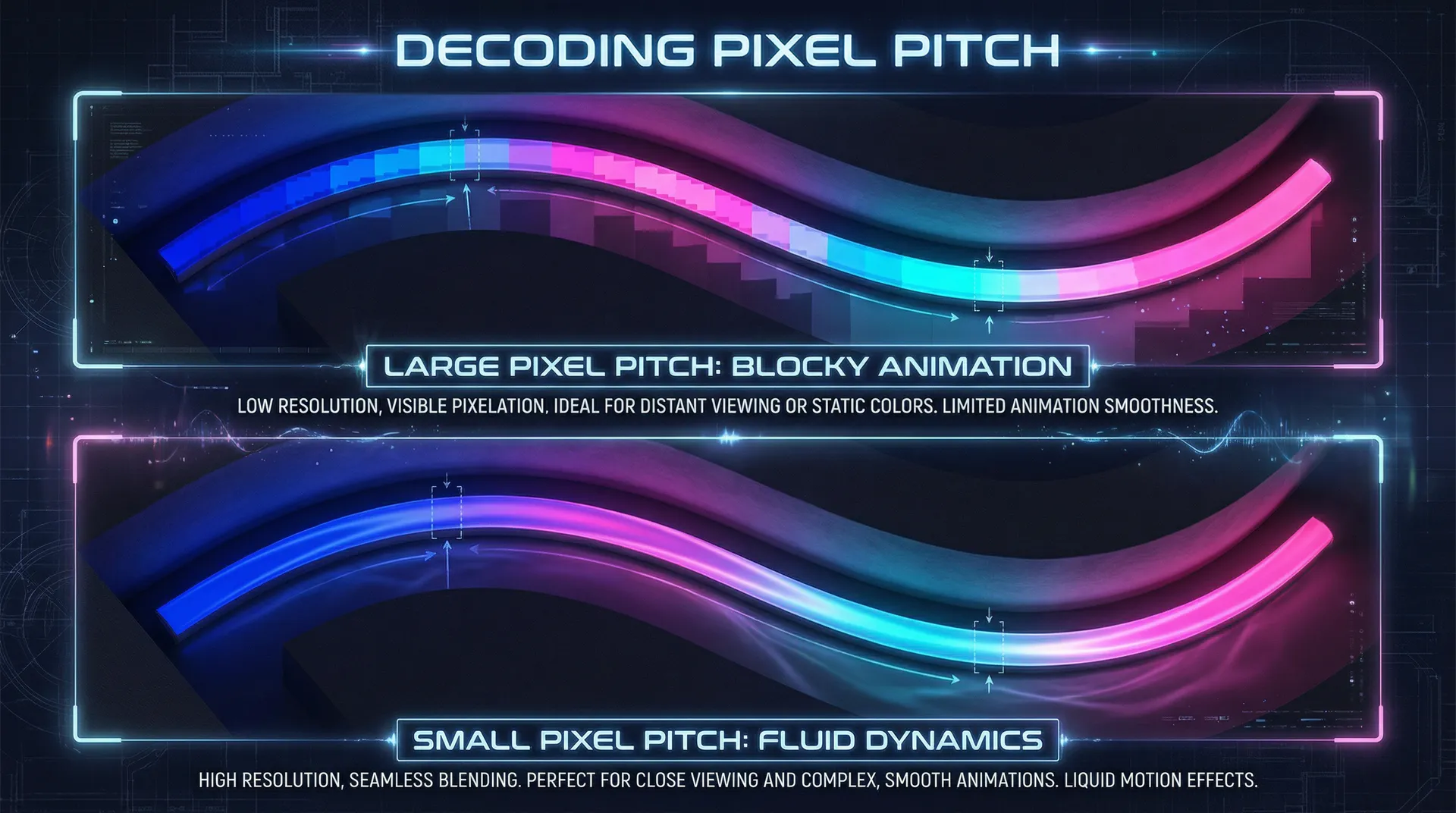

If your pixel pitch is too large (e.g., controlling the strip in 10cm chunks), any fast-moving animation will visibly "jump" from one block to the next, destroying the illusion of fluid motion.
The Golden Rule: Viewing Distance Dictates Pitch
So, should designers always specify the highest possible resolution (1-LED-per-pixel) to guarantee smoothness? Absolutely not. Over-specifying resolution is the fastest way to destroy a project budget, requiring exponentially more data cables, massive DMX universes, and hyper-expensive media servers to process the heavy data load.
The secret to perfect dynamic lighting is calculating the exact pixel pitch based on the Minimum Viewing Distance.
The human eye blends discrete points of light into a continuous image at certain distances. This is the same physics that makes a stadium LED screen look flawless from the stands but like a grid of distinct bulbs when you stand one meter away.

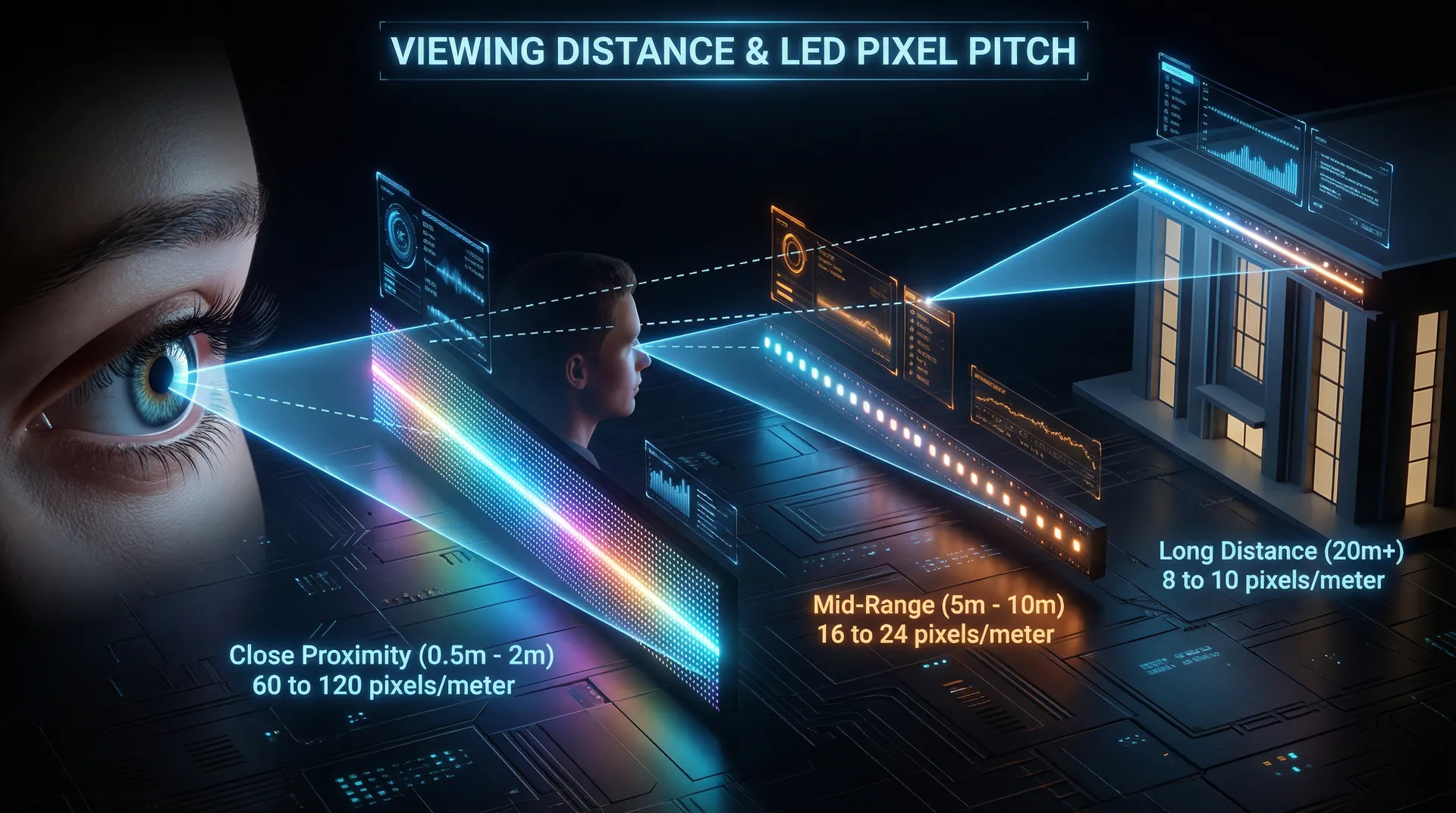

Close Proximity (0.5m - 2m): For eye-level applications like bar counters, handrails, or immersive indoor tunnels, the eye catches every detail. Here, you need ultra-high resolution. A tight pixel pitch (e.g., 60 to 120 pixels/meter) is mandatory for buttery-smooth gradients and fast chases.
Mid-Range (5m - 10m): For standard high ceilings or atrium outlines, the eye naturally blurs the light. A medium resolution (e.g., 16 to 24 pixels/meter) provides excellent fluid motion while drastically cutting down data processing costs.
Long Distance (20m+): For building facades and skyscraper crown lighting, high resolution is completely wasted. A low-density pitch (e.g., 8 to 10 pixels/meter) is mathematically sufficient. The animation will look flawlessly smooth to the observers on the street below.
The JRLite System Integration Approach
At JRLite, we know that a premium silicone extrusion is only half the battle. True architectural lighting is the seamless marriage of physical hardware and digital intelligence.
We don't just sell addressable strips; we engineer the visual outcome.
Our complete range of digital linear luminaires is designed with scalable Addressable LED pixel pitch options, ranging from ultra-dense, single-IC architectural neon for flawless close-up fluid dynamics, to highly efficient, longer-pitch configurations optimized for massive exterior facades.
Furthermore, our systems are pre-engineered to integrate seamlessly with standard SPI controllers and professional DMX512 networks, ensuring that data voltage drop and signal decay are mitigated before they ever reach the site.
Don't let poor resolution pixelate your vision. Calculate the pitch, fluidize the light, and Light the Exceptional.
