The Brain Behind the Beauty
DMX512 vs. SPI: Choosing the Right Addressable Protocol for Dynamic Facades

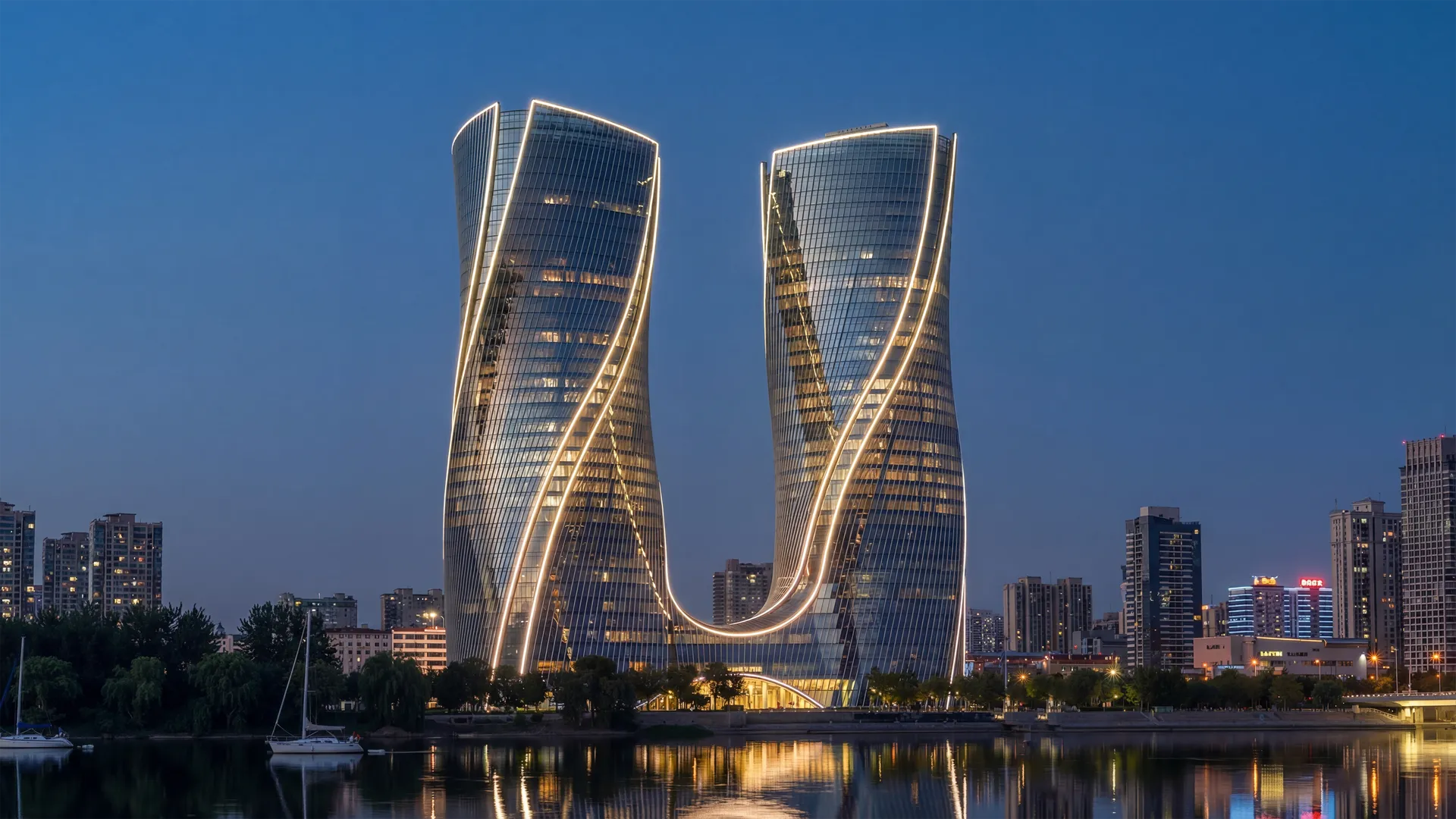

Imagine a stunning, 40-story architectural masterpiece. To bring the building to life at night, the designers specified a massive addressable LED facade, capable of sweeping color gradients and dynamic video effects.
On the night of the grand opening, disaster strikes. On the 20th floor, a single tiny microchip inside the linear lighting fails. Instantly, every single light from the 20th floor up to the 40th floor freezes, glitches, or goes completely dark.
The hardware was installed perfectly, but the system architecture was fundamentally flawed for the scale of the project.
When transitioning from static lighting to dynamic architectural lighting, you are no longer just an electrician running power wires; you are an IT engineer building a data network. The most critical decision you will make is choosing the right communication language for that network.
In the world of DMX vs SPI LED technology, choosing the wrong protocol can turn a breathtaking design into a costly maintenance nightmare.
The Illusion of "Pixels"
Both DMX512 and SPI protocols allow you to control individual "pixels" (sections of an LED strip) to create moving effects. However, how they transmit that data is completely different.

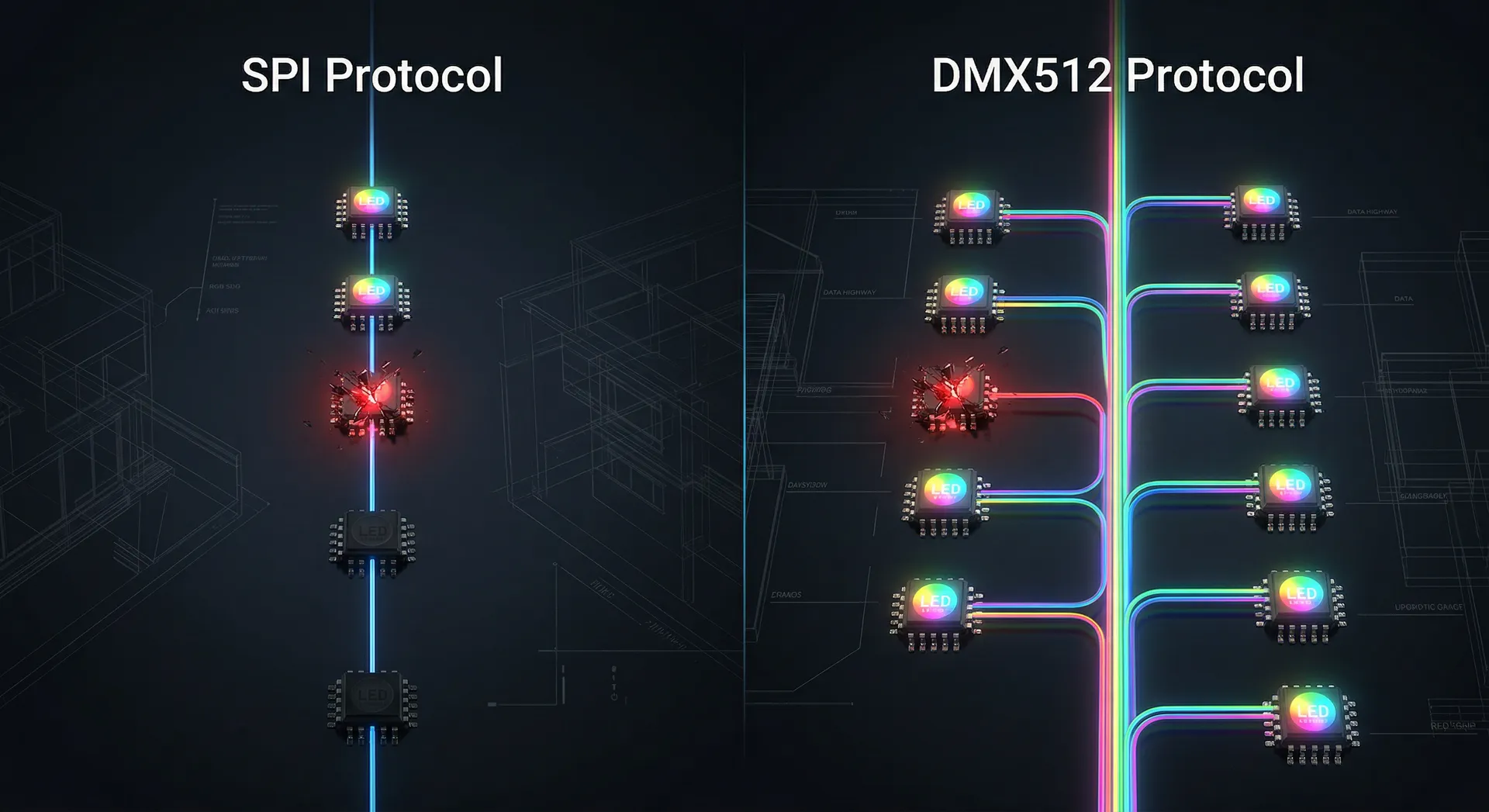

To understand the difference, we must look at their physical network topology.
SPI (Serial Peripheral Interface): The Bucket Brigade
Think of an SPI signal like a bucket brigade—a line of people passing buckets of water to put out a fire.
The controller sends the data to the first LED chip. That chip takes the data it needs, and physically hands the rest of the data to the second chip, which hands it to the third, and so on.
The Advantage: SPI is incredibly fast, allows for extremely high pixel density (controlling very small segments for detailed animations), requires very few wires, and is highly cost-effective.
The Fatal Flaw: It is a series circuit for data. If one person in the bucket brigade trips and falls (a chip burns out), the bucket drops. The data stops entirely. Every LED pixel after the broken chip will fail to receive instructions. Furthermore, SPI signals are fragile and cannot travel long distances from the controller to the first light without signal amplifiers.
DMX512 (Digital Multiplex): The Postal Service
Originally developed for theatrical stage lighting, DMX512 is the undisputed heavyweight champion of architectural lighting.
Think of DMX like a highly organized postal service. The controller broadcasts all the data down a main highway. Every LED pixel is assigned a specific "address" (like a house number). The pixel watches the highway, grabs only the mail addressed to it, and ignores the rest.
The Advantage: DMX operates on a parallel data structure. If pixel #45 gets destroyed by a lightning strike or physical damage, it simply stops reading its mail. Pixel #46, #47, and the rest of the building continue operating flawlessly because the main data highway is unbroken.
The Power of Distance: Utilizing robust RS-485 transmission, DMX signals can travel massive distances (up to 300 meters) without signal degradation, making it highly resilient against electrical interference in large commercial environments.
The Decision Guide: Which should you choose?
At JRLite, we engineer both systems, but we strongly advise our partners to choose based on the environment and the Cost of Maintenance.
Choose SPI When:
You are designing indoor applications, retail displays, or low-altitude landscape lighting.
You need extreme pixel density (e.g., controlling every single LED chip individually).
The lighting is easily accessible for maintenance if a chip fails.
Budget constraints are tight.
Choose DMX512 When:
You are building a massive addressable LED facade on a high-rise building or bridge.
You are in an environment with high electromagnetic interference.
Maintenance is expensive or dangerous: If replacing a failed segment requires renting a crane, closing a street, or hiring professional climbers, always choose the fault tolerance of DMX.
You need integration with centralized, global control systems (like Pharos or Madrix).
The JRLite Digital Ecosystem
We understand that a beautiful silicone extrusion is useless without a stable brain. JRLite is not just a luminaire manufacturer; we are a complete optoelectronics integration partner.
Whether you need the ultra-reliable, long-distance architecture of our AXE DMX RGBW Series for a stadium facade, or the high-resolution flexibility of our advanced SPI solutions for an interior feature, we provide the hardware, the decoding infrastructure, and the engineering support to ensure your dynamic vision never goes dark.
Build the network right the first time, and Light the Exceptional.
