ACE 1220S WHT
Large Size Neon
LEDLINE ACE 1220S WHT is a side-bending flexible LED strip designed for long-run applications, reaching up to 28 meters. With a robust IP68 (not underwater) rating and excellent UV and chemical resistance, it is ideal for durable facade, contour, and architectural lighting. It offers multiple power options for project flexibility and features a convenient DIY connector for simplified on-site installation and re-connection.
• CCT : 2700K, 3000K,4000K
• Ra : >90
• MacAdam Ellipse(SDCM) : ≤3
• Bending Direction : Side Bend
• Standard Lumen Output : 460 lm/m (@3000K, 9.6W/m)
• Mounting : Aluminum Profile, Clips
• Voltage : 24V DC
• Power : 4.8W/m, 9.6W/m, 14.4W/m
• IP Rating : IP68 (Not for underwater application)

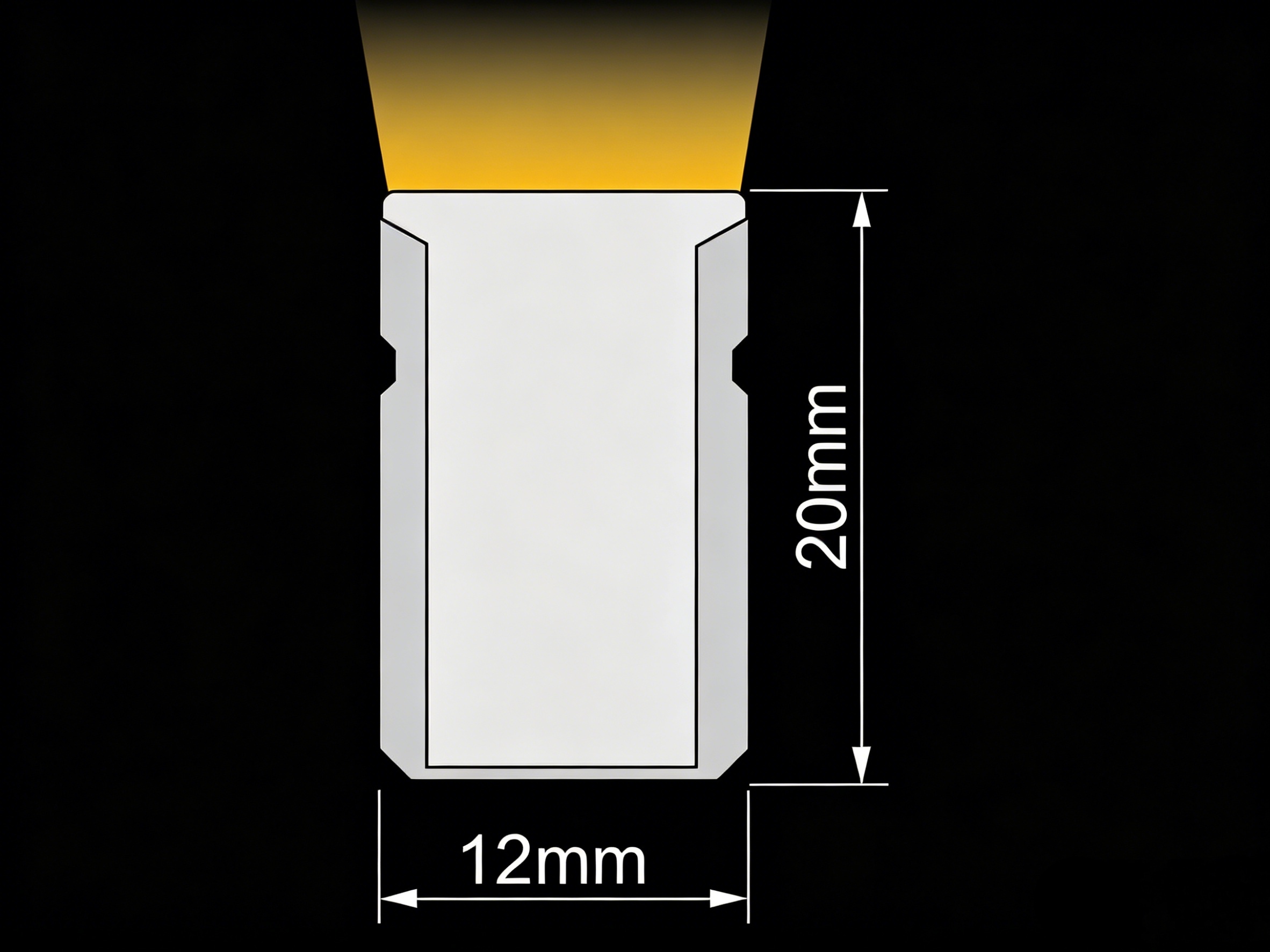

• Dimension : 12mm(W) x 20mm(H)
• Unit cut : 50mm
• Max running length : 28M (4.8W/m), 20M (9.6W/m), 15M (14.4W/m)
• Operating Temperature : -40℃ to 55℃
• Warranty : 5 Years
• Certification : CE, RoHS, REACH
