overlock sewing machine
HX8VII Series
Digital drive beautiful stitches

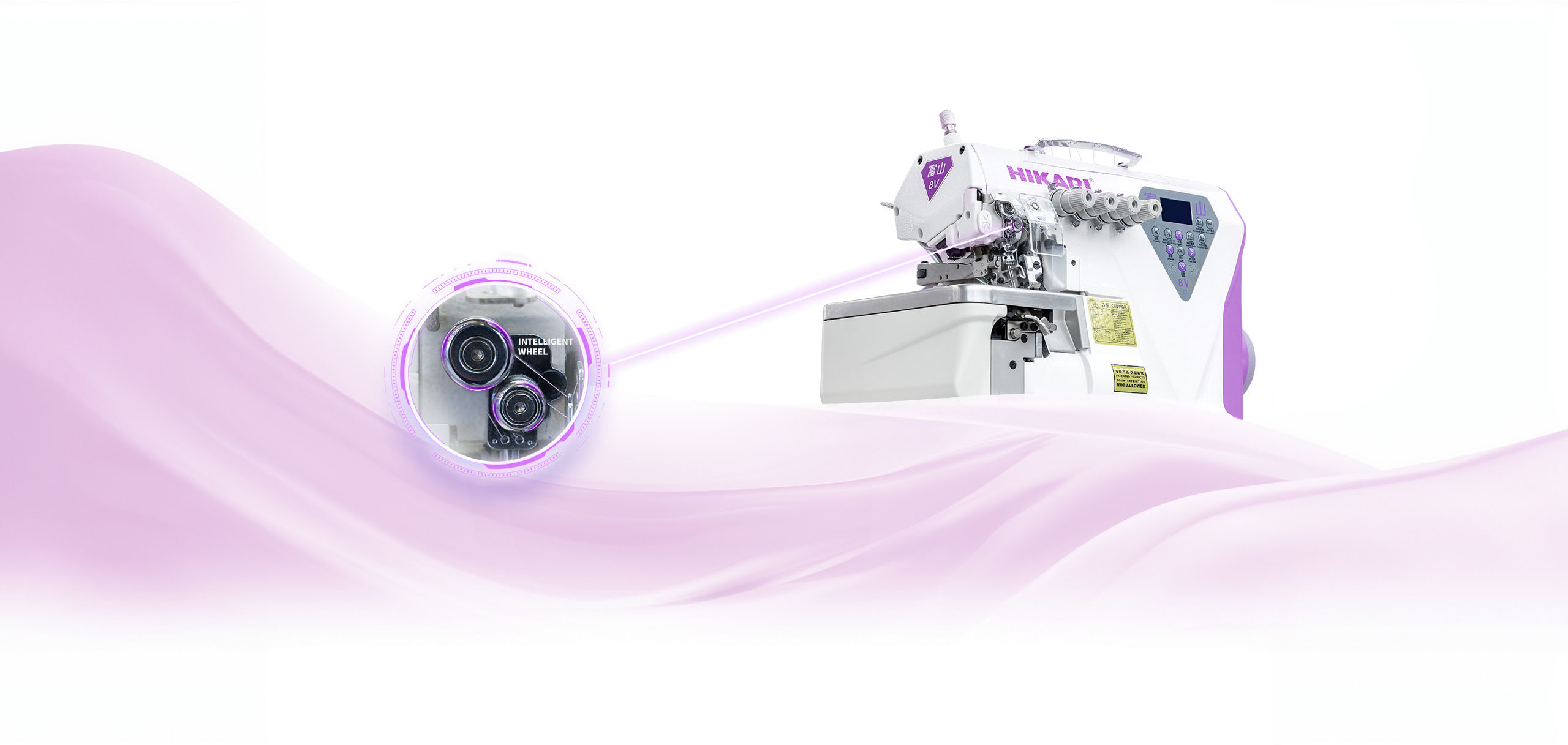

Equipped with Hikari's Proprietary
Intelligent Thread Tension Technology
-
From Thin to Thick
Beautiful Stitches Every Time -
Thin Fabric Wrinkling
Greatly Improved -
Thread Breakage Probability
Reduced by 80%
*Optional Hikari IoT for Digital Factory Achievement*
80% Reduction
in Thread Guide Holes Inside Looper Cover

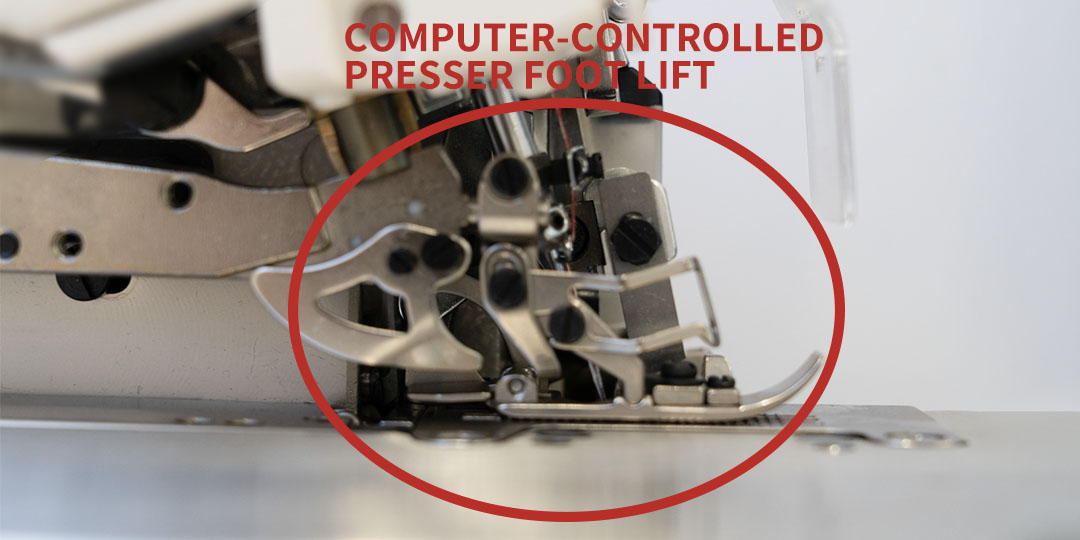

Digitally Controlled Presser Foot Lifting, Adjustable Height
Motor-Controlled Thread Trimming
Equipped with LED Light
Equipped with Dust Collection Device
-

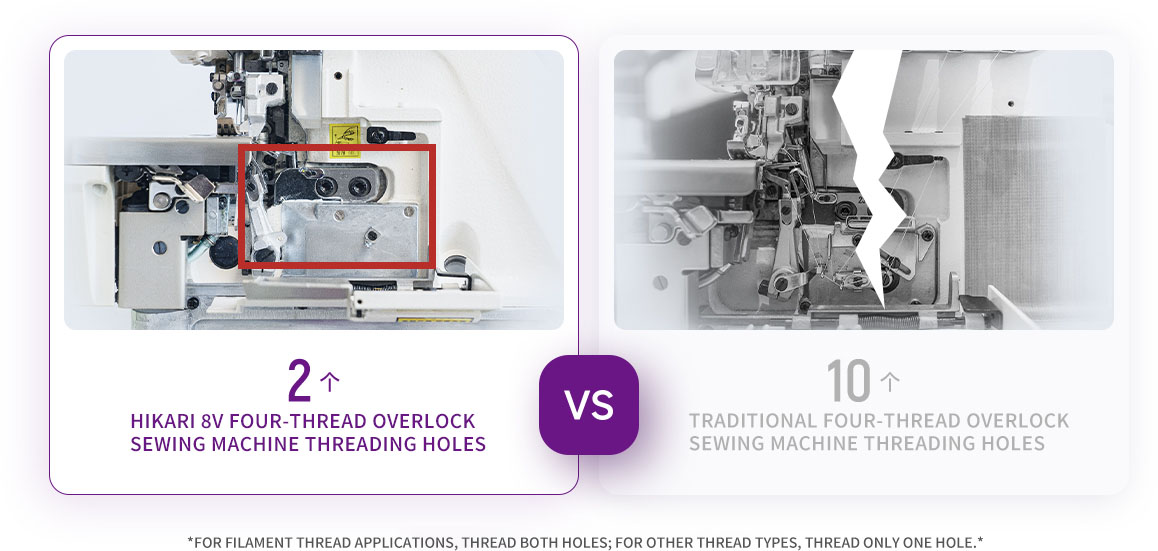

80% Reduction
in Thread Guide Holes Inside Looper Cover80% Reduction in Thread Guide Holes Inside Looper Cover
Easy and Efficient
-
Digitally Controlled Presser Foot Lifting, Adjustable Height
Digitally Controlled Presser Foot Lifting, Adjustable Height with Soft Sound
-

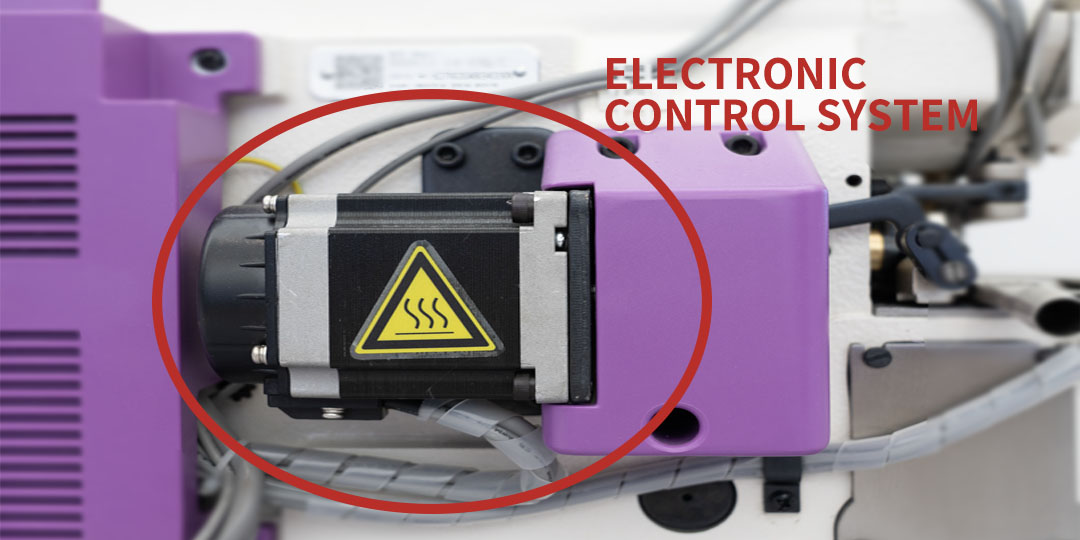

Motor-Controlled Thread Trimming
Motor-Controlled Thread Trimming,Faster and Quieter
-

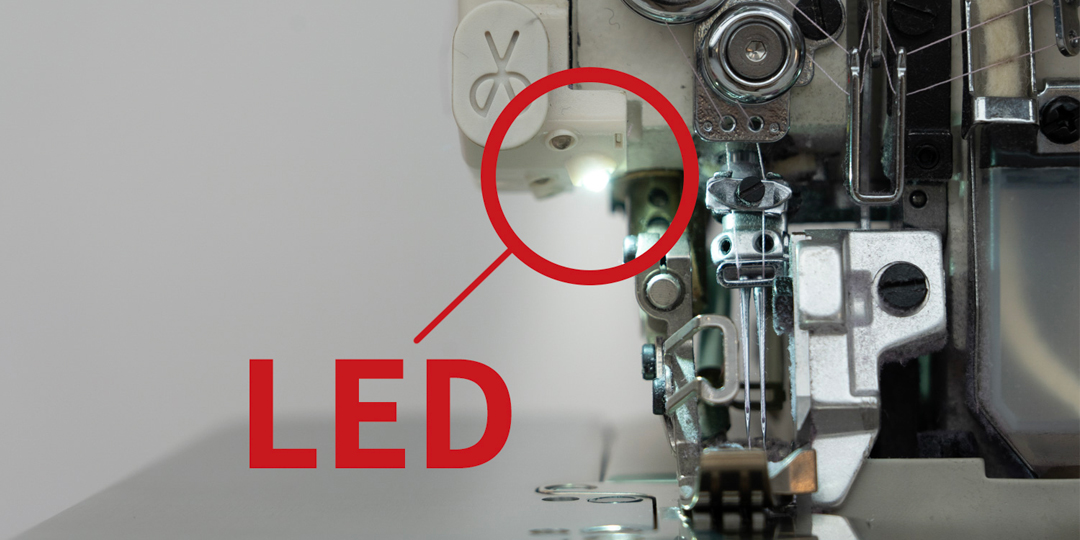

Equipped with LED Light
Equipped with LED Light
-

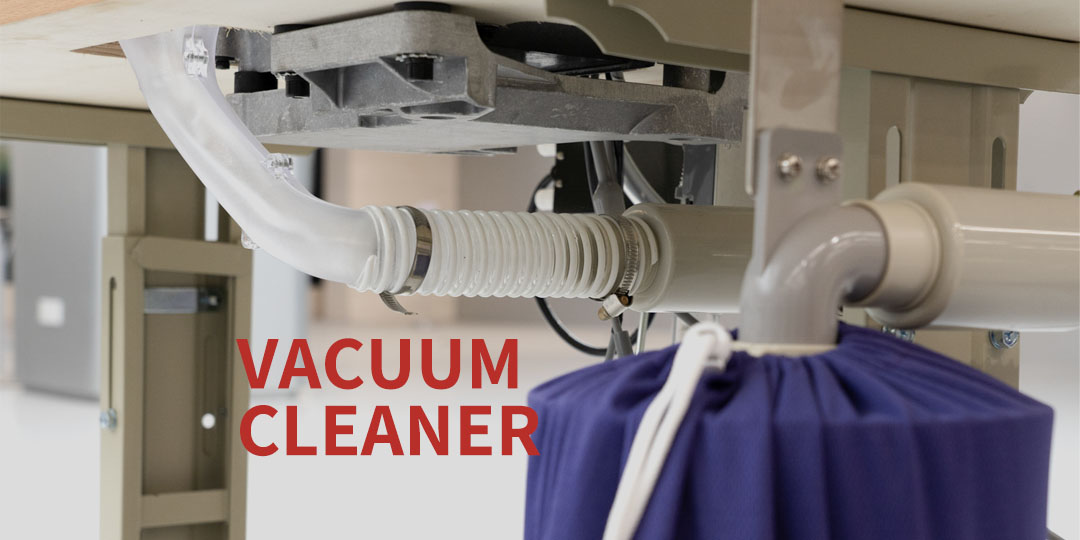

Equipped with Dust Collection Device
Equipped with Dust Collection Device for Clean and Tidy Workplace
-
80% Reduction
in Thread Guide Holes Inside Looper Cover
-
Digitally Controlled Presser Foot Lifting, Adjustable Height
-
Motor-Controlled Thread Trimming
-
Equipped with LED Light
-
Equipped with Dust Collection Device
Product Specifications
| Box type | Needle | No.Of needles | No.Of threads | Needle gauge | Stitch width | Stitch length | Differential ratio | Height of presser foot | Light-Weight Materials | Medium-Weight Materials | Heavy-Weight Materials | Sewing Speed | Packaging Dimensions |
| HX8VII-04-02C | DCx27 | 1 | 3 | 0 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 |  |
7000 | 534x368x546mm | ||
| HX8VII-04-02KSC | DCx27 | 1 | 3 | 0 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
7000 | 534x368x546mm | ||
| HX8VII-14-03C | DCx27 | 2 | 4 | 2 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
7000 | 534x368x546mm | |
| HX8VII-14-04C | DCx27 | 2 | 4 | 2 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
|
7000 | 534x368x546mm |
| HX8VII-14-04B1/C | DCx27 | 2 | 4 | 2 | 7mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
7000 | 534x368x546mm | |
| HX8VII-14-03S/C | DCx27 | 2 | 4 | 2 | 2mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
7000 | 534x368x546mm | |
| HX8VII-14-03Q/C | DCx27 | 2 | 4 | 2 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
7000 | 534x368x546mm | |
| HX8VII-14-03KSC | DCx27 | 2 | 4 | 2 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
7000 | 534x368x546mm | |
| HX8VII-14-03KHC | DCx27 | 2 | 4 | 2 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
7000 | 534x368x546mm | |
| HX8VII-14-83BL/C | DCx27 | 2 | 4 | 2 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
7000 | 534x368x546mm | |
| HX8VII-14-84BL/C | DCx27 | 2 | 4 | 2 | 4mm | 0.6-4.5 | 0.7-1.6 | 7.0 | |
|
|
7000 | 534x368x546mm |
| HX8VII-16-03C | DCx27 | 2 | 5 | 3 | 5mm | 0.6-4.5 | 0.7-1.6 | 5.5 | |
|
7000 | 534x368x546mm | |
| HX8VII-16-03B/C | DCx27 | 2 | 5 | 5 | 5mm | 0.6-4.5 | 0.7-1.6 | 5.5 | |
|
7000 | 534x368x546mm | |
| HX8VII-16-04C | DCx27 | 2 | 5 | 5 | 7mm | 0.8-5 | 0.7-1.6 | 7.0 | |
7000 | 534x368x546mm | ||
| HX8VII-16-03KHC | DCx27 | 2 | 5 | 3 | 5mm | 0.6-4.5 | 0.7-1.6 | 5.5 | |
|
7000 | 534x368x546mm | |
| HX8VII-16-03C | DCx27 | 3 | 6 | 3x2 | 4mm | 0.6-4.5 | 0.7-1.6 | 5.5 | |
|
7000 | 534x368x546mm | |
| HX8VII-16-04C | DCx27 | 3 | 6 | 5x3 | 4mm | 0.8-5 | 0.7-1.6 | 7.0 | |
7000 | 534x368x546mm |
