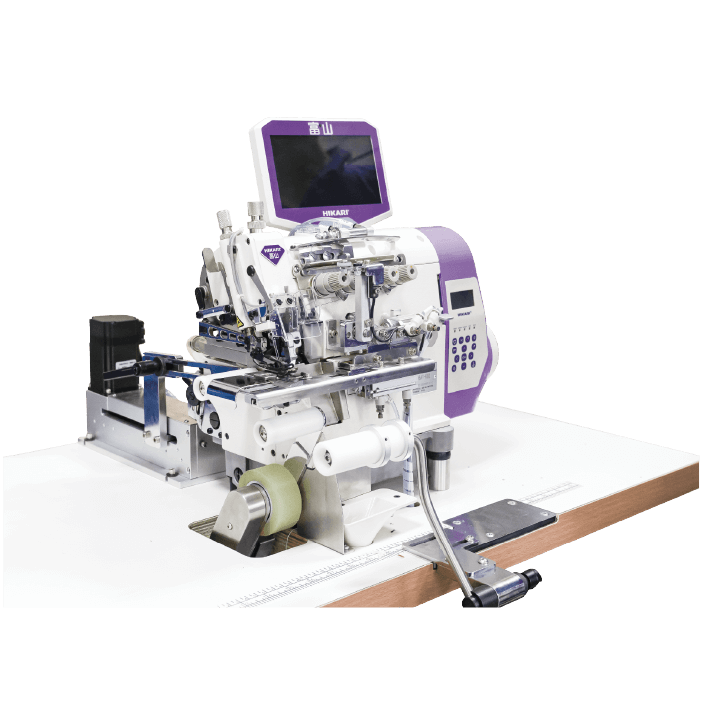

Automatic crew neck / waistband attaching machine
HSAT-K9D

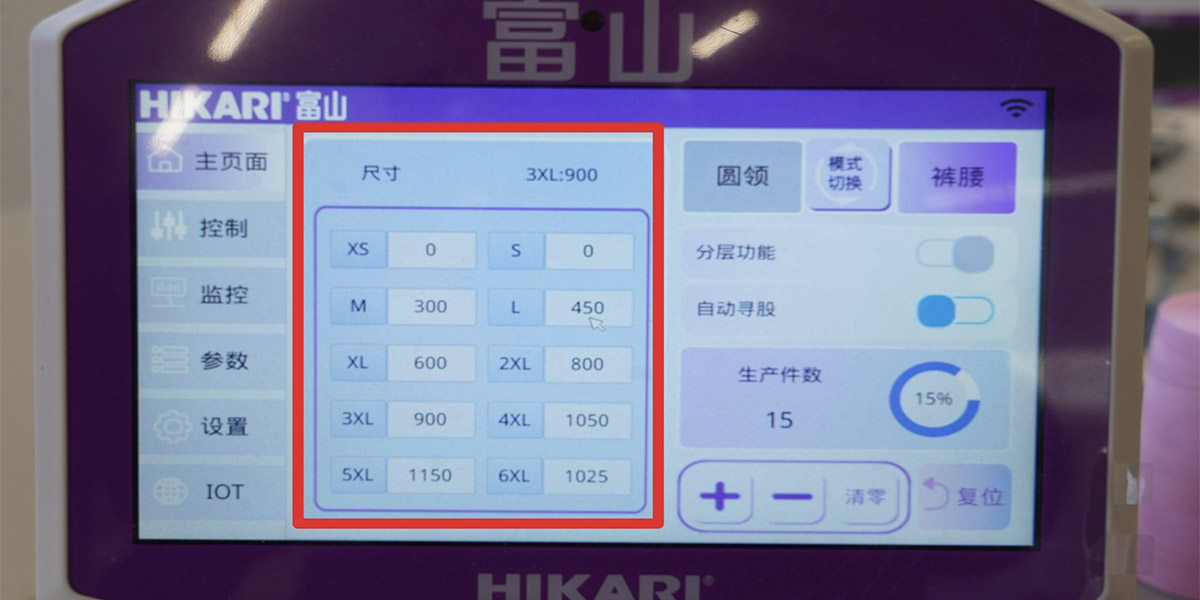

Key Use Value
Other Usage Values
-

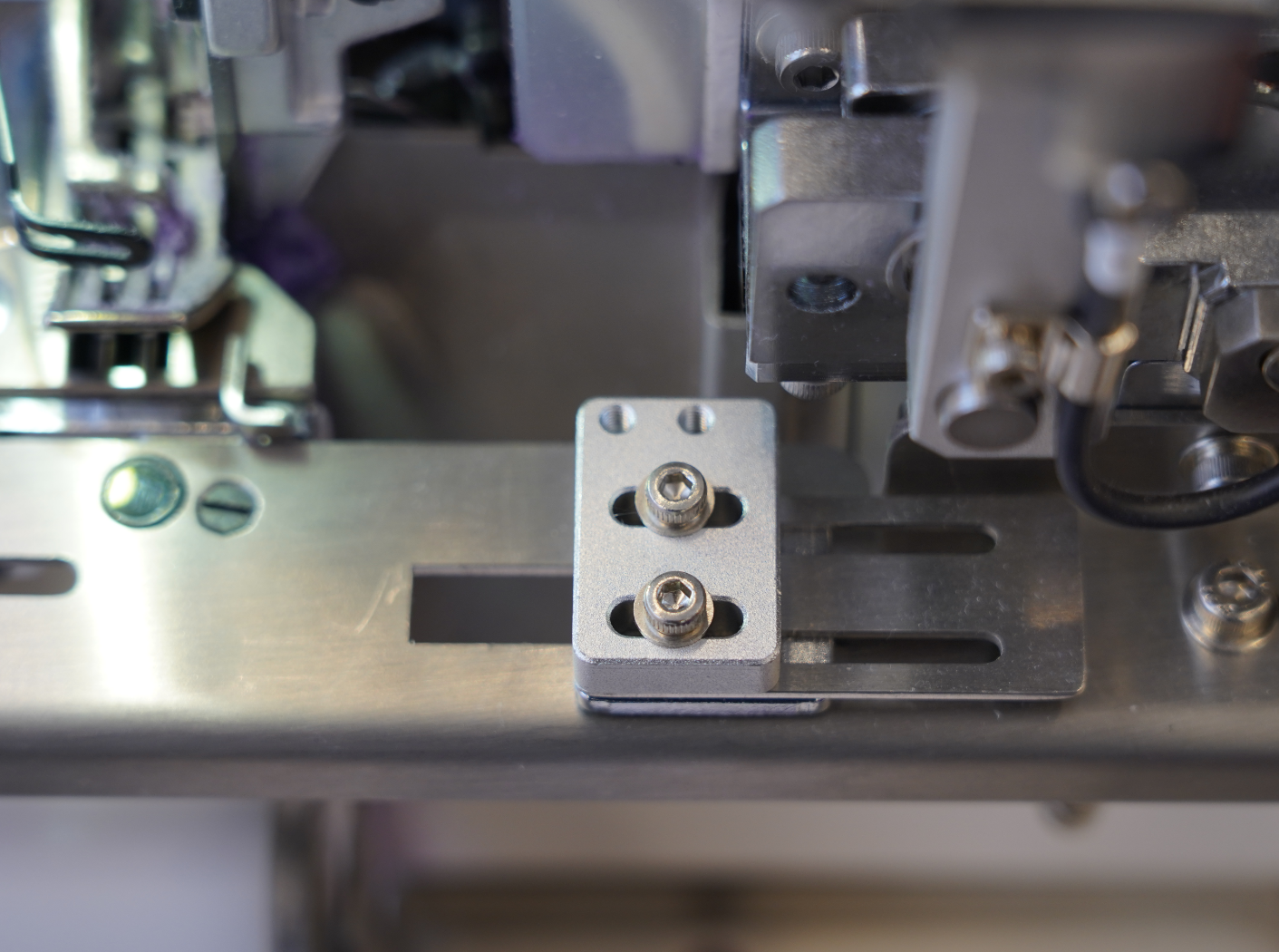

Equipped with automatic collar strip positioning and layered positioning (Patent No. ZL20192155580.5 - Utility Model)
-
Precise crew neck size with accuracy up to ±2mm
-

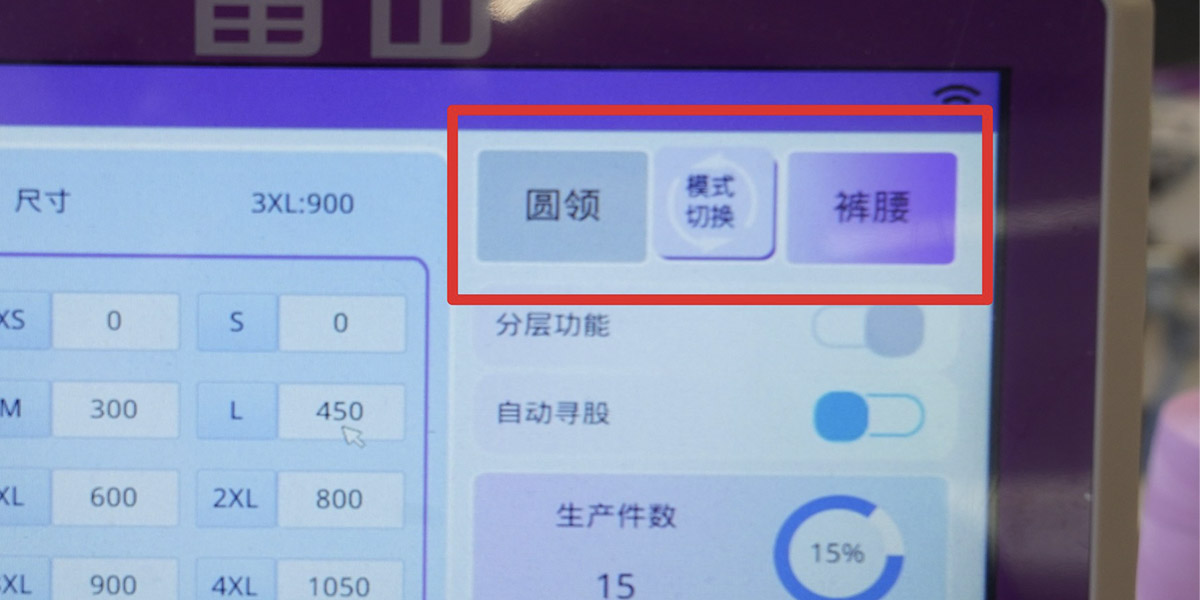

Separate automatic and manual layers for free switching
-
Optional Hikari IoT Function for Equipment Network Connectivity, Helping Enterprises Build Digital Factories
Specifications
| Product Model | Sewing Machine Needle | Stitch Count | Thread Count | Needle Pitch | Stitch width | Stitch length | Differential ratio | Width of collar sewing | Collar sewing range | Width of Tightness | Joint waistband of trousers | Sewing speed | Presser Foot Lift Height | Packing size |
| HSAT-K9D | DCx27 #9-#11 |
2 | 4 | 2 | 2x4(6mm） | 0.7-3.8 | 0.8-1.8 | 1-4cm (Hemming） |
28-140cm | 2-7cm | 35-140cm | 4500 | 1-7mm | 1380x780x1290mm |
